DST-103
An affordable heavy duty tripod for professional use, the DST-103 can handle up to 22 lbs (10kgs) of camera and equipment. When mounted the camera rides smoothly and securely on an all-metal oil-filled fluid head. The head has 2 drag control settings independent of its pan and title locks as well as an industry standard 100mm ball mount.
Design with today's HDV camera rigs in mind the DST-103 is equally at home supporting traditional HD video cameras or HD DSLR cameras with rail systems. The 22 lbs (10kgs) capacity makes the DST-103 prefect for ENG applications. The heavy duty all-metal seal fluid head allows the camera to ride smoothly and effortlessly. The long-slide quick release camera plate a travel of +/- 60mm to make balancing a camera with mounted accessories easy. The head also has 2 drag control settings to adjust the feel of the movement to the equipment mounted on it. The head comes with one handle and can mount a second handle on the left side as well. (left-handed handle sold separately)
The DST-103's tripod had a 100mm ball mount for the head and 3 stage legs with dual rails on the upper two stages to increase stability and reduce flex. The DST-103 comes with a lockable mid-level spreader and a soft case. The tripod can fit into the standardized foot-pads, spreaders and dollies of the DAIWA broadcast system.
|
 |
Model No. |
DST-103 |
| Max. Height |
64.25 in. (1,632mm) |
| Weight |
14.42 lbs (6,540g) |
| Capacity |
13 – 22 lbs (6-10kgs) |
| Closed Length: |
34.25 in. (870mm) |
| Pan Range: |
360° |
| Ball Base: |
100mm |
| Leg Sections |
Three (3) |
| Bubble level: |
Yes, battery illuminated for 20 sec. |
|
|
Camera Attachment: |
standard 3/8 and 1/4-20 with video pin |
|
|
Included Accessories: |
Carrying case |
|
|
|
|
|
|
 |
|

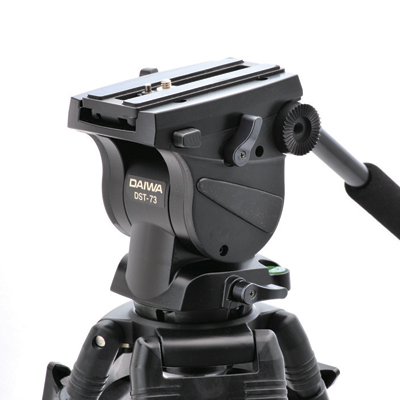

DST-73
3 leg section high-stress components manufactured from die-casting aluminium. Excellent for video cameras weighing 7kg or less. The bubble leveler has LED light for using in a dark room or night time. Tilt range from +90°to -90° with 75mm ball base
-High-stress components manufactured from die-cast aluminum
-All metal head and aluminum sliding camera post
-Tilt range from +90°to -90°
-Bubble level with LED light (20 seconds auto off)
|
 |
Model No. |
DST-73 |
| Max. Height |
62.59 in. (1,590mm) |
| Min. Height |
28.78 in. (731mm) |
| Weight |
10.36 lbs. (4.7kg) |
| Capacity |
6.61 to 15.43 lbs. (3 to 7kg) |
| Leg Sections |
Three (3) |
| Ball Base |
2.95 in. (75mm) |
|
|
Leg Lock Type: |
Speed release leg locks |
|
|
Folded Length: |
- |
|
|
|
|
|
|
 |
|

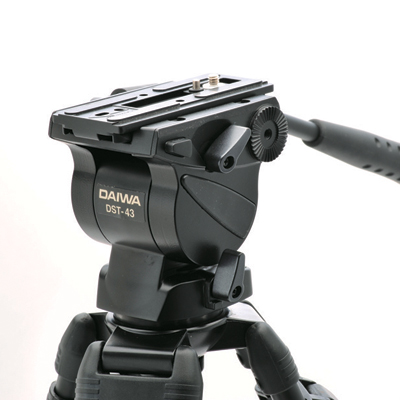

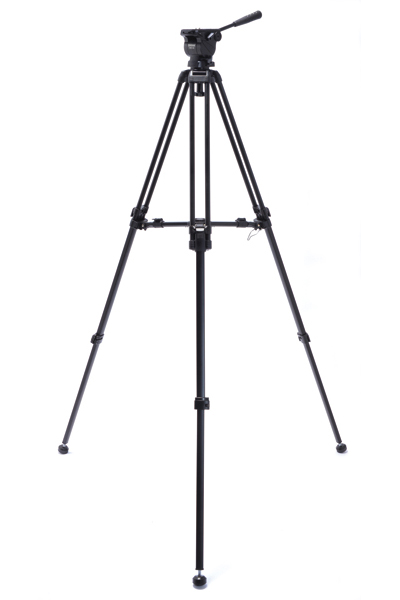

DST-43
3 leg section high-stress components manufactured from die-casting aluminium. Excellent for video cameras weighing 4kg or less. The bubble leveler has LED light for using in a dark room or night time. Tilt range from +90°to -80° with 60mm ball base
-High-stress components manufactured from die-cast aluminum
-All metal head and aluminum sliding camera post
-Tilt range from +90°to -90°
-Bubble level with LED light (20 seconds auto off)
|
 |
Model No. |
DST-43 |
| Max. Height |
59.37 in. (1,508mm) |
| Min. Height |
26.61 in. (676mm) |
| Weight |
7.05 lbs. (3.2kg) |
| Capacity |
up to 8.81 lbs. (up to 4kg)
|
| Leg Sections |
Three (3) |
| Ball Base |
2.36 in. (60mm) |
|
|
Leg Lock Type: |
Speed release leg locks |
|
|
Folded Length: |
- |
|
|
|
|
|
|
 |
|

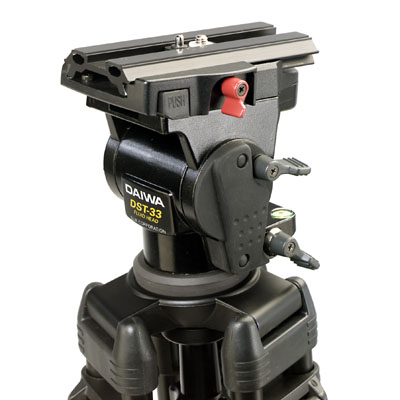

DST-33
-The DST-33 is designed to securely support a new generation of light-weight DV and HD TV cameras
-All-metal fluid head for smooth camera movements and lasting durability
-Long, metal quick release plate allows perfect balancing of a camera with accessories attached
-60mm ball leveler and speed release leg locks for fast set-up and pack-up of tripod
-Excellent for "run-and-gun" video with compact cameras
-Expandable mid-level spreader included for increased stability
-Dual rail upper stage legs to prevent tripod flex when panning
|
 |
Model No. |
DST-33 |
| Max. Height |
59.65 in. (1515mm) |
| Min. Height |
26.57 in. (675mm) |
| Weight |
6.97 lbs. (2.85kgs) |
| Capacity |
8 lbs. (3.6kgs) ideal load range 5~10 lbs. |
| Leg Sections |
Three (3) dual rail upper section |
| Ball Base |
2.36 in. (60mm) |
|
|
Leg Lock Type: |
Speed release leg locks |
|
|
Folded Length: |
- |
|
|
|
|
|
 |
 |
|

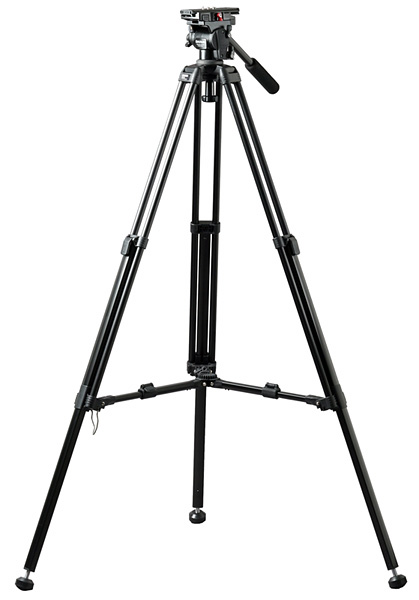

DST-32
-The DST-32 is designed to securely support a new generation of light-weight DV and HD TV cameras
-All-metal fluid head for smooth camera movements and lasting durability
-Long, metal quick release plate allows perfect balancing of a camera with accessories attached
-60mm ball leveler and speed release leg locks for fast set-up and pack-up of tripod
-Excellent for "run-and-gun" video with compact cameras
-Expandable mid-level spreader included for increased stability
-Dual rail upper stage legs to prevent tripod flex when panning
|
|
Model No. |
DST-32 |
| Max. Height |
61.6 in. (1565mm) |
| Min. Height |
36.6 in. (930mm) |
| Weight |
7.05 lbs. (3.2kgs) |
| Capacity |
12 lbs. (5.44kgs) ideal load range 5~10 lbs. |
| Leg Sections |
Two (2) dual rail upper section |
| Ball Base |
2.36 in. (60mm) |
|
|
Leg Lock Type: |
Speed release leg locks |
|
|
Folded Length: |
- |
|
|
|
|
|
|
 |
|

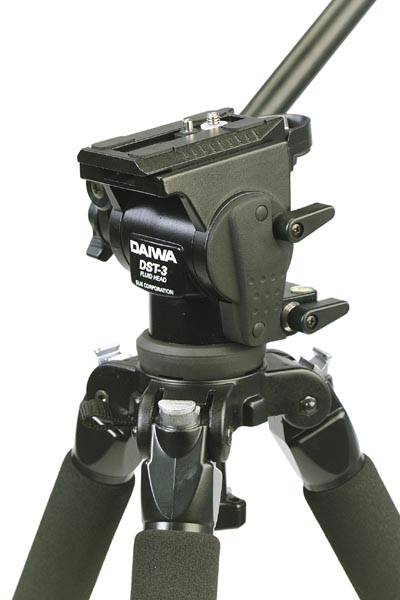

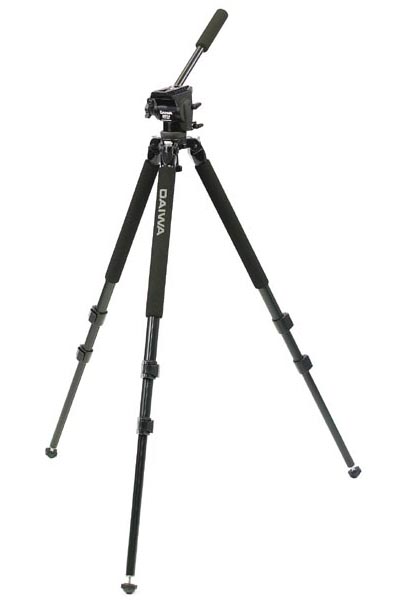

DST-3
- High-stress components manufactured from die-cast aluminum
- Multi-angle leg locks for very low angle positioning
- Excellent for light-weight Mini DV cameras and consumer camcorders
- All-metal head and quick release platform, separate tilt and pan locks and sliding camera post
- Tilt range from +52° to -90°
- 60mm ball leveler
|
 |
Model No. |
DST-3 |
| Max. Height |
57.28 in. (1455mm) |
| Min. Height |
11.5 inches (292mm) |
| Weight |
6.11 lbs. (2.77kgs) |
| Capacity |
6.6 lbs. (3.0kgs) |
| Leg Sections |
Three (3) |
| Ball Base |
2.36 in. (60mm) |
|
|
Folded Length: |
- |
|
|
|
|
|
|
 |
|

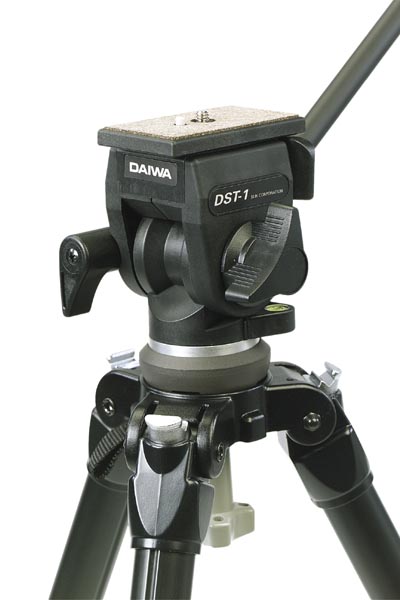

DST-1
- Multi-angle leg locks for very low angle positioning
- Excellent performance with cameras weighing 6.5 lbs.
or less which use a 1/4” cameras mount screw and video pin.
- Spring loaded Fluid head for smooth movements
- 60mm ball leveler
- Short folded length gives good for travel
|
 |
Model No. |
DST-1 |
| Max. Height |
51.18 in. (1300mm) |
| Min. Height |
26.57 in. (675mm) |
| Weight |
4.32 lbs. (1.96kgs) |
| Capacity |
6.6 lbs. (3.0kgs) |
| Leg Sections |
Three (3) |
| Ball Base |
2.36 in. (60mm) |
|
|
Folded Length: |
- |
|
|
|
|
|
|
|
 |
|

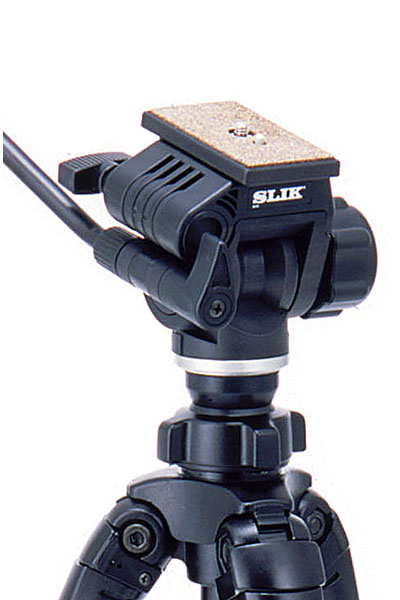

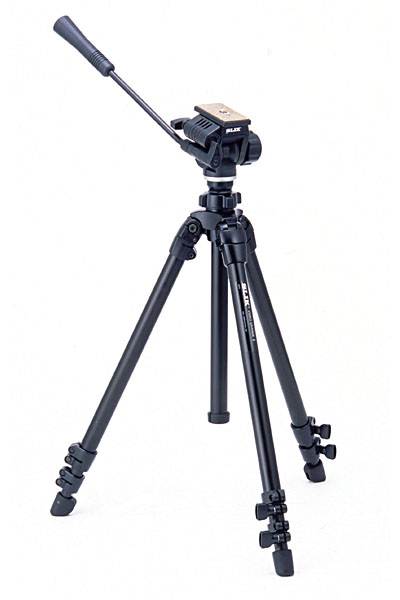

504 QF II
The SLIK 504 QF II shares its leg set with the ABLE 300 DX, but it comes complete with a solid SLIK 2-way fluid pan head incorporating an easy to grip pan handle with full angle adjustments. The panhandle is long enough to give excellent leverage for smooth panning. There is a bubble level built into the base of the head so the tripod can be leveled quickly after being set up. The head also has a video quick release plate for fast mounting and un-mounting of the camera.
The legs of the 504 QF II set up and fold down securely, just loosen and tighten leg lock knob to extend or shorten them. 3 position leg locks make for easy set up on uneven ground or steps. These leg locks also allow the height of the tripod to lowered dramatically. Combine this feature with the 504 QF II/300 DX Short Column (optional accessory) and the tripod can be lowered to just 14 inches (350 mm) the for very low angle or macro videography in the field.
This lightweight video tripod folds down to just 27 inches, and with a weight of 5.6 lbs it’s an excellent tripod to take on location.
The SLIK U 700 dolly was created so that the tripod could be moved around a studio with ease.
|
 |
Model No. |
504 QF-II |
| Max. Height |
61.40 in. (1.560 mm) |
| Min. Height |
18.50 in. (470 mm) |
| Weight |
5.65 lbs. (2,570 grams) |
| Capacity |
6.61 lbs. (3kgs) |
| Leg Sections |
Three (3) |
| Ball Base |
2.36 in. (60mm) |
|
|
Folded Length: |
- |
|
|
|
