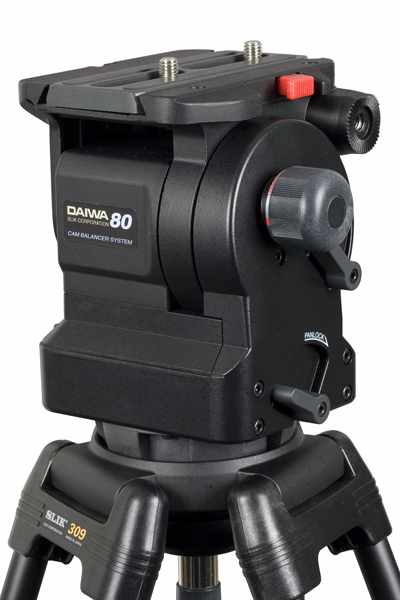

DAIWA 80 Heavy Duty Fluid Video Head - 100mm
The DAIWA 80 heavy-duty pan head is an upgraded version of the DAIWA EP 56. The DAIWA-80 is well suited for both ENG/EFP and studio applications.
Improvements include a slightly tall head than the DAIWA EP 56 that allow wider tilt range of + 60° to - 75° adding 15° to the negative tilt range. The bubble level has been upgraded with a backlight that stays on for 1 minute after the button is pressed giving the camera operator plenty of time to level the head when setting up in a dark studio, arena or night-time location shoot.
The DAIWA-80 has a professional Cam-Balance system capable of counter-weighing up to 49 pounds of camera and equipment. The sealed, oil-filled fluid head glides with silky smoothness yielding ultimate control to the camera operator. To further customize the head to the equipment being used, the DAIWA-80 has an infinitely adjustable and repeatable pan and tilt drag settings.
The head uses an industry standard 100mm ball base so it can be used on a wide variety of tripods from SLIK-DAIWA or many other manufacturers.
|
| Model No. |
DAIWA-80 |
Ball Base: |
100mm |
| Height: |
11.2 in. (285mm) |
Drag/Friction: |
Variable Viscosity-Field Adj. |
| Weight: |
9.25 lbs (4.2 kgs) |
Temperature Range: |
- 4 F to 140 F ( - 20 C to + 60 C) |
| Capacity: |
26 to 48.5 lbs. (12-22 kgs) |
Warranty: |
3 years |
| Tilt Range: |
+ 60° to - 75° |
Stock Number: |
DW-DAIWA-80 |
| Pan Range: |
360° |
|
|
|
|
|
|
|
|
 |
|

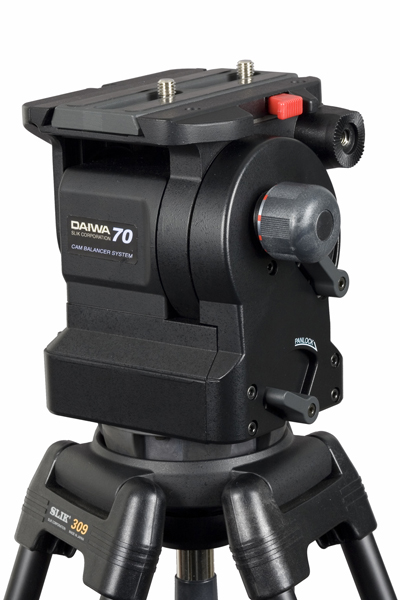

DAIWA 70 Heavy Duty Fluid Video Head - 100mm
The DAIWA 70 heavy-duty pan head is an upgraded version of long-time industry standard DAIWA 15 head. This head is well suited for both ENG /EFP and studio applications.
Improvements include a slightly tall head than the DAIWA 15 that allow a wider tilt range of + 90° to - 75° adding 15° to the negative tilt range. The bubble level has been upgraded with a backlight that stays on for 1 minute after the button is pressed giving the camera operator plenty of time to level the head in low-lighting conditions.
The DAIWA-70 has a professional Cam-Balance system capable of counter-weighing up to 33 pounds of camera and equipment. The sealed, oil-filled fluid head glides with silky smoothness yielding ultimate control to the camera operator. To further customize the head to the equipment being used, the DAIWA-70 had an infinitely adjustable and repeatable pan and tilt drag settings.
The head uses an industry standard 100mm ball base so it can be used on a wide variety of tripods from SLIK-DAIWA or many other manufacturers.
|
| Model No. |
DAIWA-70 |
Ball Base: |
100mm |
| Height: |
11.2 in. (285mm) |
Drag/Friction: |
Variable Viscosity, user adjustable |
| Weight: |
9.25 lbs (4.2 kgs) |
Temperature Range: |
- 4 F to 140 F ( - 20 C to + 60 C) |
| Capacity: |
18 to 33 lbs. (8-15kgs) |
Warranty: |
3 years |
| Tilt Range: |
+ 90&Mac176; to - 75&Mac176; |
Stock Number: |
DW-DAIWA-70 |
| Pan Range: |
360° |
|
|
|
|
|
|
|
 |
 |
|

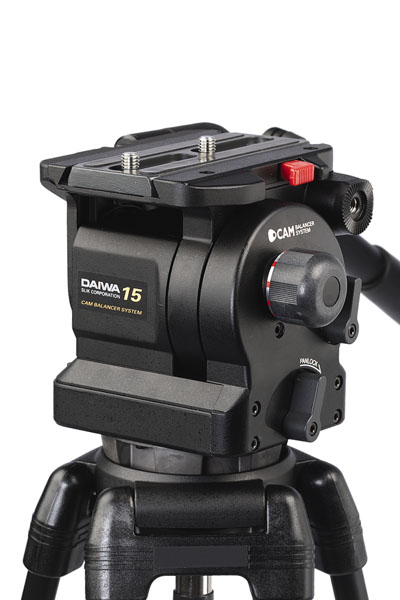

DAIWA 15 CAM BALANCE SYSTEM - 100mm
- Excellent heavy-duty fluid head for both ENG and EFP / Studio applications
- Perfect counter balance for DV camcorders throughout the tilt range of +90° to -60°
- Unsurpassed smoothness and a personalized feel is provided by infinitely adjustable and repeatable drag settings
- Created to perform with DV cameras weighing from 18 to 33 lbs.
|
| Model No. |
15 |
Pan Range |
360° |
| Weight |
9.25 lbs.(4.2Kgs) |
Ball Base |
100mm Claw type |
| Capacity |
18 to 33 lbs. (8 to 15kgs) |
Drag/Friction |
Variable Viscosity-Field Adj. |
| Tilt Range |
+90° to -60° |
Temperature Range |
-4°F~+140°F(-20°C~+60°C) |
|
|
 |
|

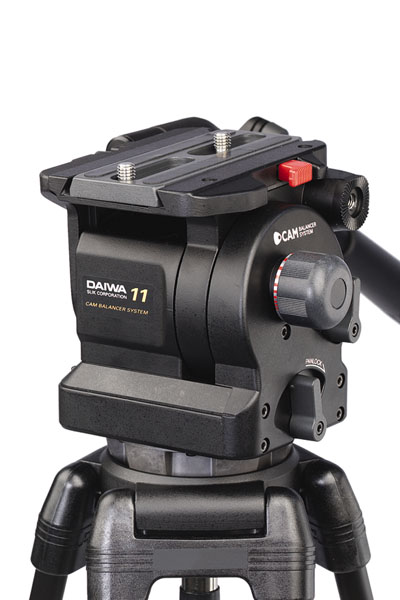

DAIWA 11 CAM BALANCE SYSTEM - 100mm
- Sharing the same feature set with the Daiwa 15, the Daiwa 11 is a heavy-duty fluid head for moderately weighted cameras
- Superior performance with cameras weighing 13 to 25 lbs.
- Once mounted and balanced, the camera load is perfectly counter balanced throughout the tilt range of +90° to -60°
- Full range of controls including infinitely adjustable drag for tilt and pan movements
|
| Model No. |
11 |
Pan Range |
360° |
| Weight |
9.25 lbs.(4.2Kgs) |
Ball Base |
100mm Claw type |
| Capacity |
13 to 25 lbs. (6 to 11kgs) |
Drag/Friction |
Variable Viscosity-Field Adj. |
| Tilt Range(Up) |
+90° to -60° |
Temperature Range |
-4°F~+122°F(-20°C~+50°C) |
|
|
 |
|

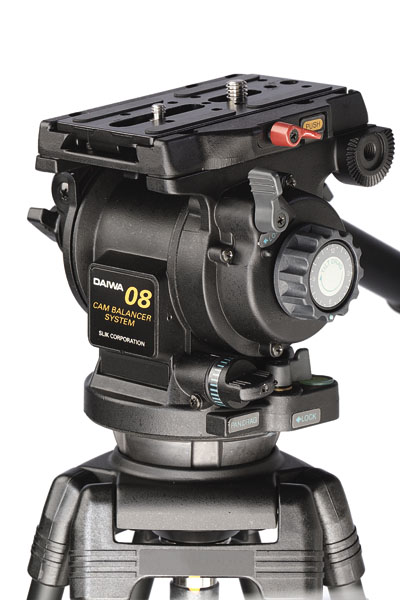

DAIWA 08 CAM BALANCE SYSTEM - 75mm
- One of the most popular sized heads in the broadcast community, more and more users are discovering the Daiwa 08 as lighter-weight DV cameras proliferate
- The professional Cam Balance System creates smooth performance with a full range of drag controls for tilt and pan movements
- A compact design and all metal construction offer years of outstanding reliability
- Designed for outstanding performance with DV cameras weighing 13 to 20 lbs.
|
| Model No. |
08 |
Pan Range |
360° |
| Weight |
7.04 lbs(3.3Kgs) |
Ball Base |
75mm Claw type |
| Capacity |
13 to 20 lbs. (6 to 9kgs) |
Drag/Friction |
Variable Viscosity-Field Adj. |
| Tilt Range |
+90° to -75° |
Temperature Range |
14°F~+122°F(-10°C~+50°C) |
|
|
|
