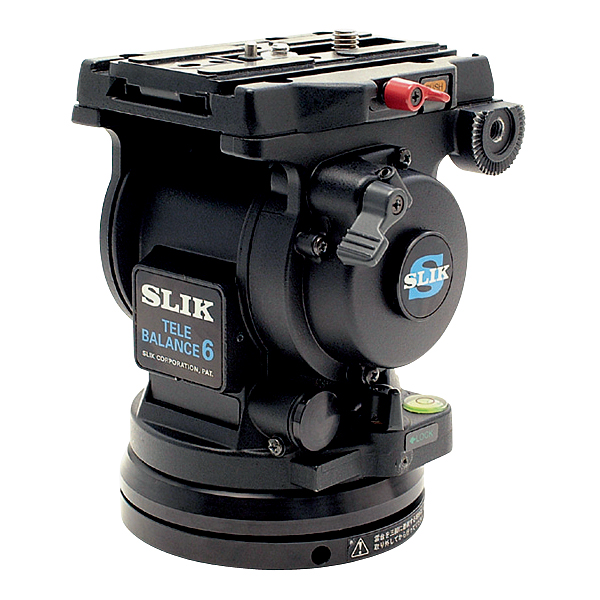

TELE BALANCE 6L
|
Click on picture for enlargement
|
|
|
|
PAN HEADS
|
Heavy-duty type
|
|
FOR USE WITH |
|
DESCRIPTION |
Especially developed Cam Balance System (PAT.) to reduce burden of the photographers. Possible to tilt very delicately even with the SLR camera with long telephoto lens such as 600mm or more. Disc type pan and tilt brake to get the exact target with very easy and light operation. High precision bubble level is equipped as the standard accessory (curvature R150mm). Sliding plate with video pin : slide rage- ±50mm (forward and backward). Each operation knobs are put at the left-hand side of the head for easier operation. An optional pan handle is available.
|
SPECIFICATIONS |
Maximum loading weight |
10.0 kgs |
Camera mounting screw |
U1/4x2,U3/8x1 |
Tripod mounting screw |
U3/8 |
Cam Balancer available weight.: |
Approx. 3~8kgs |
Temperature range |
30ºC~+50ºC |
Tilt range |
75º (up) and 75º (down) |
Camera mount plate |
Rubber |
Maximum diameter of tripod mounting baes: |
83mm |
Height: |
157mm |
Weight |
2,670g |
|
|
