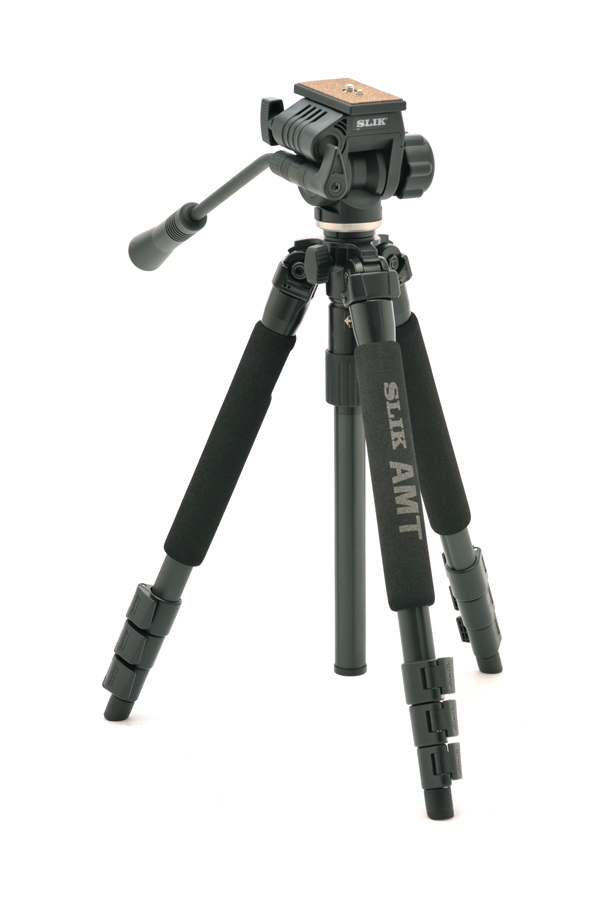

PRO 340 QF
Click on picture for enlargement
PRO Series
Medium type
FOR USE WITH
DESCRIPTION
Combination of PRO 340DX leg and 504QF II head.
Suitable for D-movie.

with 3-way fluid video head for 504QF II
SPECIFICATIONS
Folded Length: 530mm
Maximum Operating Height: 1,455mm
Minimum Operating Height: 273mm
Maximum Center Column Ext.: 290mm
Weight: 1,780g
Head Portion Weight: 620g
Leg Portion Weight: 1,160g
Leg Lock Type: S.R.L.
Leg Tip: Rubber
How To Mount Camera: Q.R.S.
Number of Leg Sections: 4
Shape of Leg Pipe/Tube:
Diameter of the first upper leg: 23.4mm
Type of Center Column Elevation: Center column type
Panhead: 3-way
Type of Bubble Level: Single bubble level
Special Features: Multi-position leg
KEY TECHNOLOGY
MADE OF SLIK SUPER ALLOY A.M.T.
(Aluminum-Magnesium-Titanium alloy)
SLIK A.M.T. Alloy offers an exceptional strength-to-weight ratio more than 40% greater than similar tripods. (except PRO 400DX & ABLE 300DX)

GROOVED TUBULAR LEGS
The groove, in the already dynamically strong circular tubing, prevents the leg from spinning around, and allows simple and secure locking. It also allows you to extend the leg from any section, regardless of the order. (except PRO 400DX & ABLE 300DX)
GEARLESS, DETACHABLE & INVERTIBLE CENTER COLUMN
Just loosen locking collar, and pull up. Camera height and direction can be adjusted in one motion. For extremely low angle positioning without changing an optional center column.

3-POSITION LEG ANGLE ADJUSTMENT
Choice of three different leg angles for quick set up on inclined, or uneven ground.
